D-Energy engineers and provides ‘E-House’ solutions made of soundproofed containers, equipped with passive fire protection by insulation class A0, A30, A60, H60, H120 and in compliance with BS EN 12079-1: 2006 for offshore and onshore facilities (built in by our partner SITAL).
The E-House solution offered by D-Energy will be bespoke to the specific customer requirements and specifications and can include all, some or more of the following list.

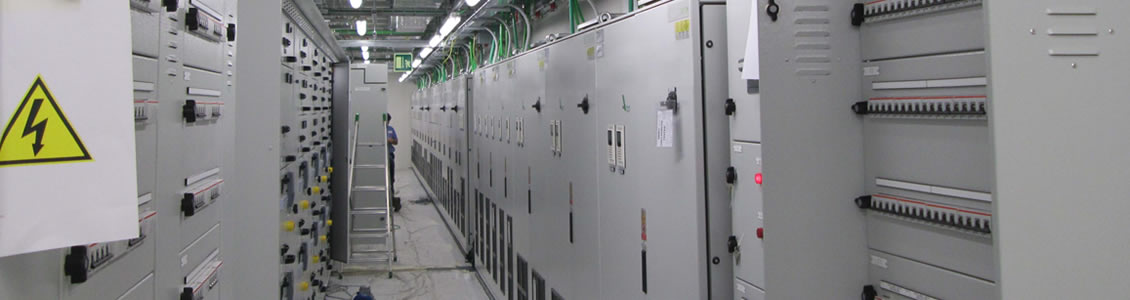

MV Switchgear (Enclosed, Metal Clad); Low Voltage Switchgear (Power Center, Motor Control Center with fixed or withdrawable units); Power supervision management and control systems; AC and DC UPS systems; Step up and Step Down Transformers; Fire detection, alarm and suppression systems; Gas detection and alarm systems; HVAC and pressurization system; Internal and external lighting and distribution power; Lighting protection and earthing; Cable transit system to allow ease of installation of field cables.
The E-House can be fully developed, engineered, manufactured, assembled and pre-tested in the factory and connected and put into operation on site.
If the size allows, the E-House is shipped fully assembled as a single unit. In the case of nontransportable dimensions, the E-House is divided into individual sections which are joined and sealed on site using a “plug and play” concept.
